Louisville, Kentucky, United States--A giant guillotine shear, with 3000 t shearing force, was developed in 1985 by Henschel (which later became Danieli Henschel), in Kassel, to fulfill the order placed by Sheppard Waste Recovery in Liverpool; in 1998 the shear was transported to River Metals Recycling in Louisville, Kentucky, USA and has been in operation there ever since; it sets the world record for being the World’s Largest Shear, according to the WORLD RECORD ACADEMY.
"The world’s largest and most powerful guillotine shear, with 3000 t shearing force, was developed in 1985 by Henschel (which later became Danieli Henschel), in Kassel, to fulfill the order placed by Sheppard Waste Recovery in Liverpool. In 1998 the shear was transported to River Metals Recycling in Louisville, Kentucky, USA and has been in operation there ever since. Danieli Centro Recycling’s After Sales Team is still able to supply spare parts for this machine," the official website says
"The capabilities of the shear are still unrivalled in the market. The machine is capable of processing complete railway wagons after dismantling the wheel axles. With it’s 3000 t cutting force, the shear is able to cut plates up to a thickness of 206mm, rounds up to 357mm and squares up to 316mm!
"t is a 3-level type shear which means scrap pre-compression through the side compression ram and the lids can be done independently from the cutting cycle through shear, clamp and pusher at the same time. (This is due to 3 separate hydraulic pressure lines which supplies the different cylinders.) The side compression can move parallel but is able to concentrate the forces at one point for better pre-compression of solid structures. This is due to the two side compression ram cylinders which assure an angled position of the side compression ram due to independent cylinder’s movement with different strokes."

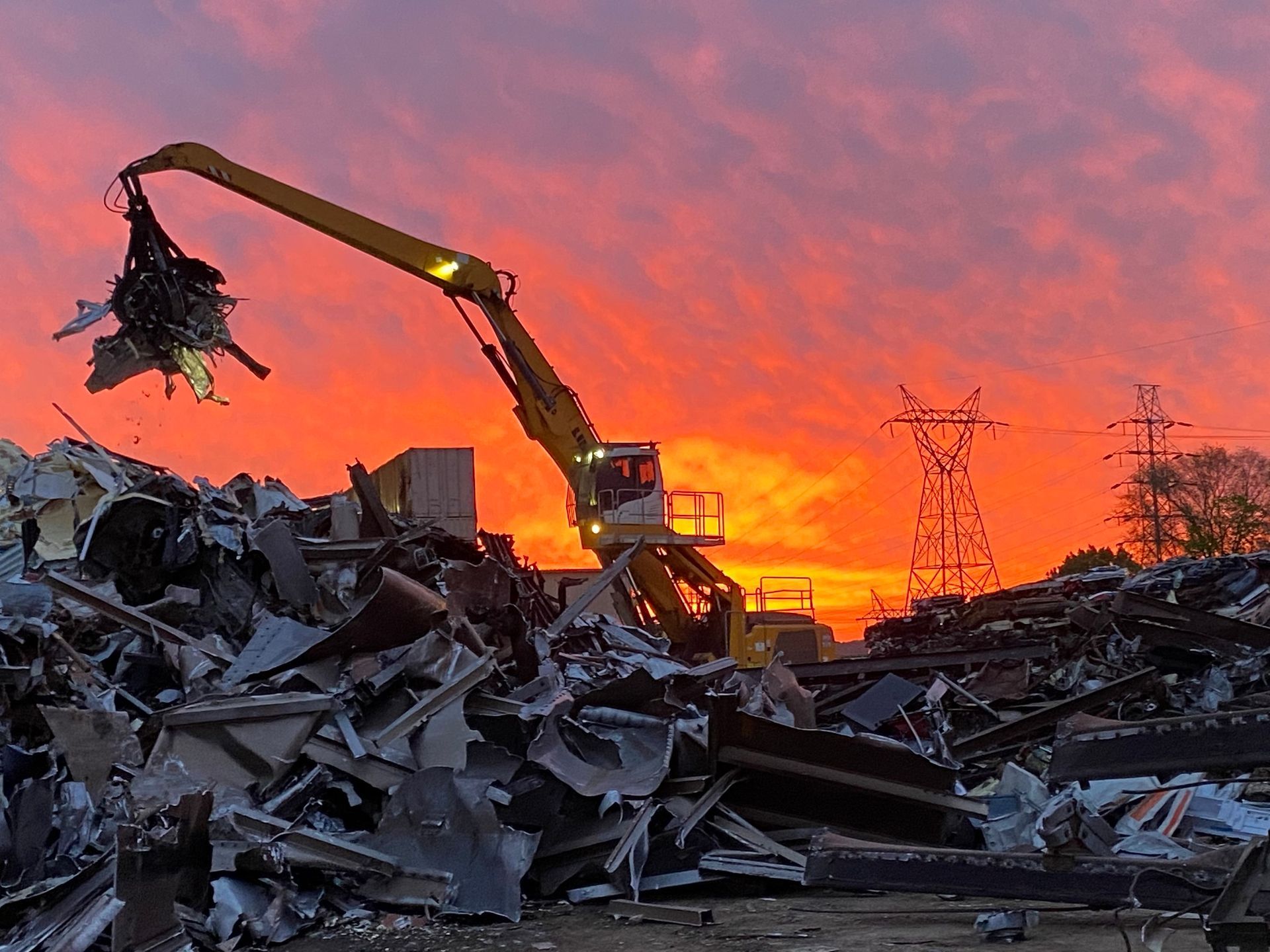

"The latest equipment acquisition for their River Metals operation in the Louisville Kentucky operation is a 1000 Series, Model 7317B rail mounted E-Crane with 104’ reach and 15 tons lift capacity feeding the world’s largest 3,000 Ton Henschel scrap shear," the E-Crane says.
"This E-Crane replaces several conventional material handlers and offers the following advantages:
